Roll Big Profi

  • Roll Big Profi
  • Features

    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • Different hoses lengths and sizes available
    • Inlet and outer fittings sizes 1/2” GAS
    • CE approved
  • Data sheet

    Download the product data sheet.

    Download

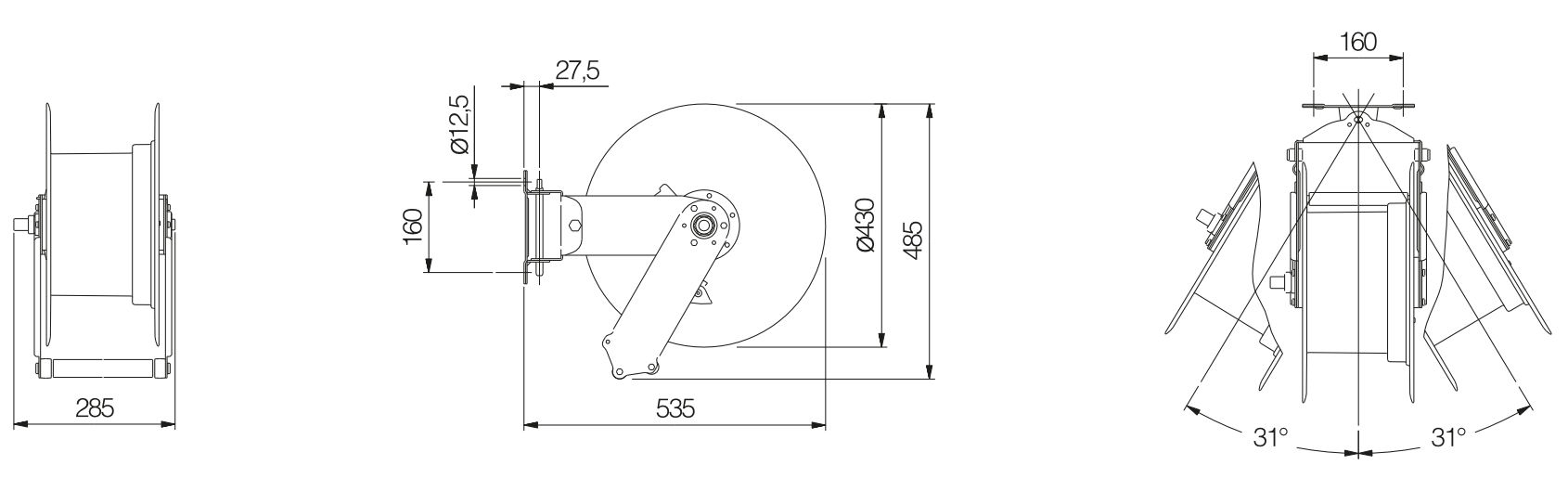

  • Drawings
  • Parts

    Download the parts data sheet.

    Download






Optional/Details

Different mounting position (wall-ceiling-floor)
Different mounting position (wall-ceiling-floor)
Casing made of painted steel with plastic drum
Casing made of painted steel with plastic drum

CodeInternal diameter (ID)Cable lengthCable length
Inlet fitting
Outlet fitting
Max pressure
Air
Water
WeightDimensions (cm)pcs x Pallet
860900
13 mm
24+1 m 1/2” M
1/2” M
20 bar
Max 20 bar
Max 40°C
17,5 Kg
53 x 47 x 35
10 pz
860910
16 mm 19+1 m 1/2” M
1/2” M 20 bar
Max 20 bar Max 40°C 19,5 Kg
53 x 47 x 35
10 pz
860920 19 mm 15+1 m 1/2” M 1/2” M 20 bar Max 20 bar Max 40°C 20Kg 53 x 47 x 35 10 pz
