  • Roll Big Profi
  • Features
    • Automatic spring rewinding
    • Casing made of painted steel with plastic drum
    • Steel swivelling wall bracket
    • Different mounting position (wallceiling - floor)
    • Available with or without hose, easily installable by the end user
    • Steel rotating joint suitable for different fluids like water, oil, grease depending on the model
    • Pressures form 60 bar to 400 bar depending on the model
    • CE approved
  • Data sheet

    Download the product data sheet.

    Download

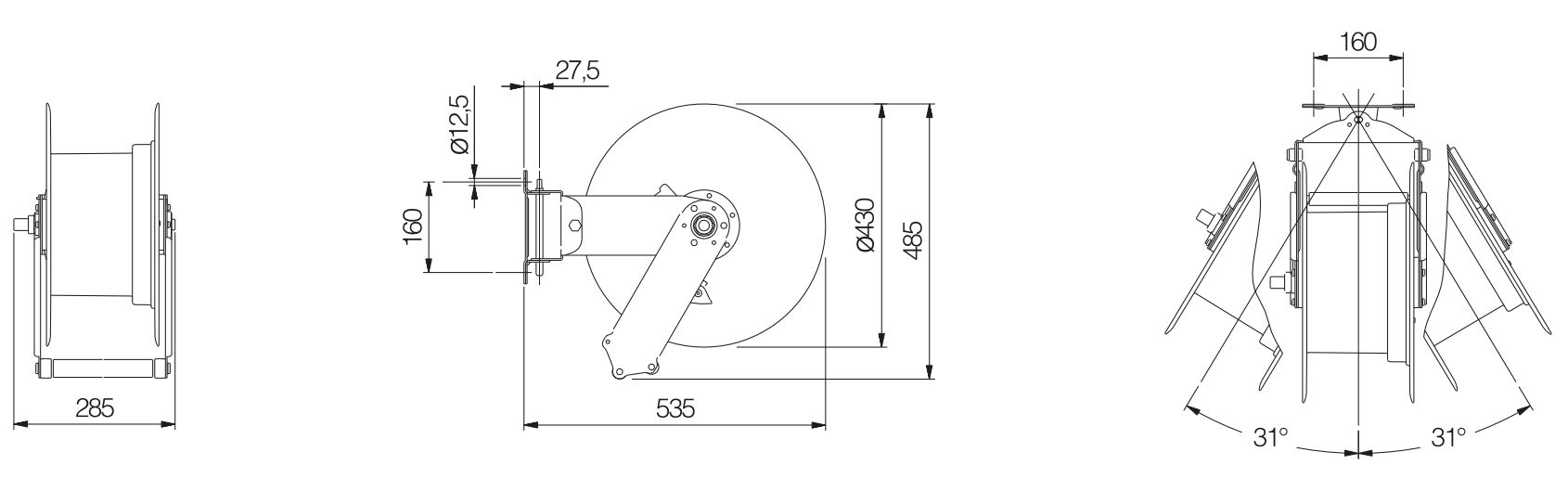

  • Drawings
    roll big profi
    Zoom
  • Parts

    Download the parts data sheet.

    Download





Optional/Details

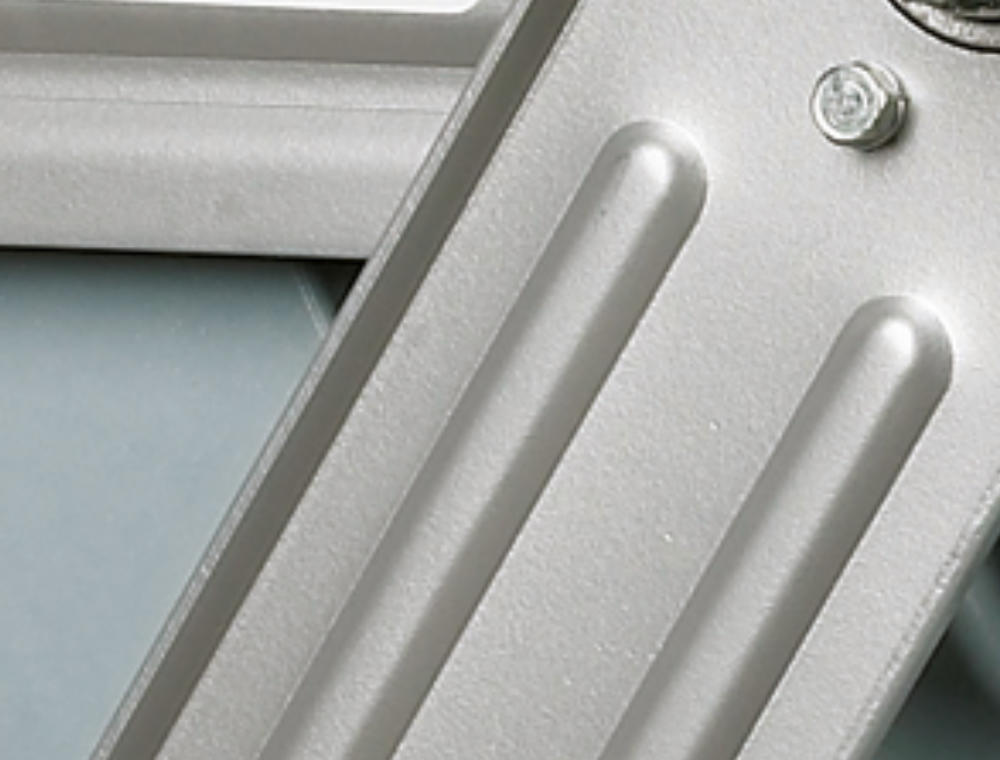

Casing made of painted steel with plastic drum
Casing made of painted steel with plastic drum
Easilly installable hose by the enduser
Easilly installable hose by the enduser

Water

CodeMax pressure
Max TempInlet fitting
 Outlet fitting
Internal diameter (ID)
 Cable lengthCable length
WeightDimensions (cm)pcs x Pallet
8606941
 150 bar
 150° C
 1/2” M
 1/2” F
 Max 1/2”
whitout hose
 Max 19 m
whitout hose
 10 Kg
 53 x 47 x 35
 10 pz
860935
 200 bar
 150° C
 1/2” M
 3/8” F
 3/8"
 19+1 m 18,5 Kg
 53 x 47 x 35
 10 pz
860945
 150 bar
 150° C
 1/2” M
 1/2” F
 1/2"
 19+1 m 20,5Kg
 53 x 47 x 35
 10 pz

Oil

CodeMax pressure
Max TempInlet fitting
 Outlet fitting
Internal diameter (ID)
 Cable lengthCable length
WeightDimensions (cm)pcs x Pallet
860931
 60 bar 40° C 1/2” M
 1/2” F
 Max 1/2”
whitout hose
 Max 19 m
whitout hose
 10 Kg
 53 x 47 x 35
 10 pz
860930
 60 bar 40° C 1/2” M
 3/8” F
 3/8"
 19+1 m
 18,5 Kg
 53 x 47 x 35
 10 pz
860940
 60 bar 40° C 1/2” M
 1/2” F
 1/2"
 19+1 m 19,5 Kg
 53 x 47 x 35
 10 pz
