  • Roll Profi Open
  • Features
    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • Different hoses lengths and sizes available
    • Inlet and outer fittings sizes 3/8”- 1/2” GAS according to the hose
    • CE approved
  • Data sheet

    Download the product data sheet.

    Download

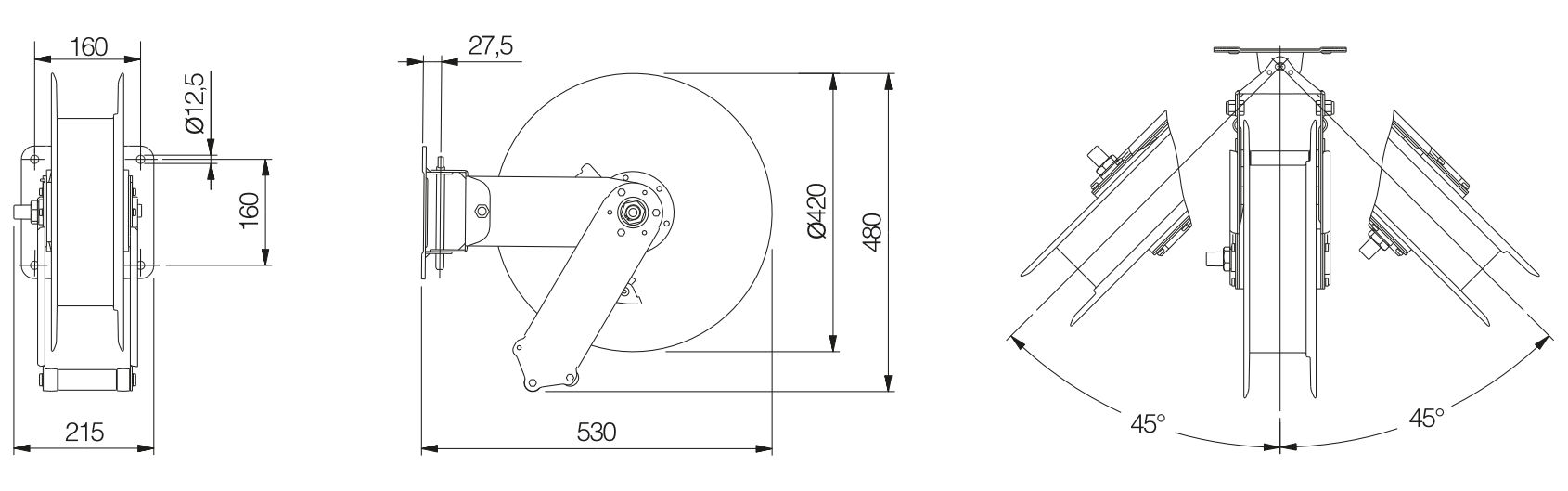

  • Drawings
    185 roll profi open
    Zoom
  • Parts

    Download the parts data sheet.

    Download





Optional/Details

Different mounting position (wall-ceiling-floor)
Different mounting position (wall-ceiling-floor)
Casing made of painted steel with plastic drum
Casing made of painted steel with plastic drum
Special bracket for fixed installations
Special bracket for fixed installations

CodeInternal diameter (ID)Cable lengthCable length Inlet fitting
 Outlet fitting
 Max pressure
 Air
 Water
WeightDimensions (cm)pcs x Pallet
860650
 10 mm
 16+2 m
 1/2” M
 3/8” M
 20 bar
 Max 20 bar
 Max 40°C
 13,5 Kg
 53 x 47 x 25
 26 pz
860660
 13 mm 13+2 m
 1/2” M
 1/2” M 20 bar
 Max 20 bar Max 40°C 14,5 Kg
 53 x 47 x 25
 26 pz
