Roll EXTRA

  • Roll EXTRA
  • Features

    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • Available with different type of cable (H05VV-F, H07RN-F)
    • CE approved
    • TÜV approved
  • Data sheet

    Download the product data sheet.

    Download

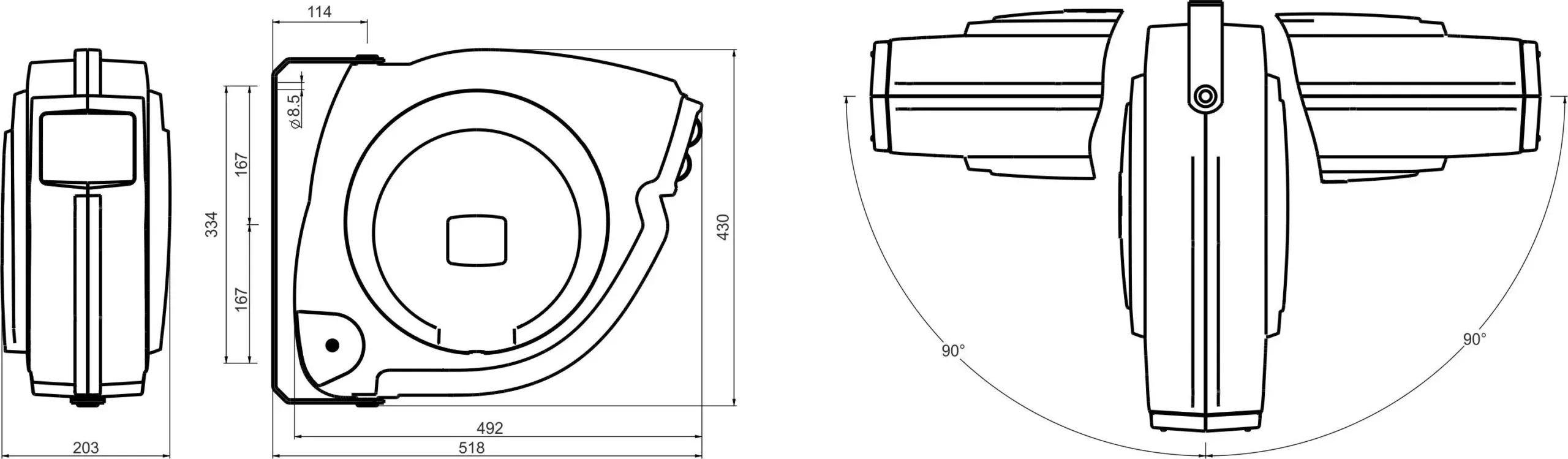

  • Drawings
  • Parts

    Download the parts data sheet.

    Download






Optional/Details

Cable guide rollers
Cable guide rollers
Circuit-braker manually restorable
Circuit-braker manually restorable
Cable ratched stop device easily removable
Cable ratched stop device easily removable

3G 230V

Size Cable lengthCable length
Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
Omologation Thermostat
Weight Dimensions (cm) pcs x Pallet
1,5 mm2 35 m H05VV-F
800 W 2000 W
882400
NO   si/yes 11,3 Kg
50 x 43,5 x 23,5
28 pz
1,5 mm2 35 m
H05VV-F
800 W
2000 W
882450
SCHUKO

si/yes 11,4 Kg
50 x 43,5 x 23,5
28 pz
1,5 mm2 35 m H07RN-F
800 W 2000 W 882500
NO



si/yes 11,2 Kg
50 x 43,5 x 23,5
28 pz

5G - 400V

Size Cable lengthCable length
Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
Omologation Thermostat
Weight Dimensions (cm) pcs x Pallet
1,5 mm2 30 m H05VV-F
1000 W 3000 W
882600
NO   si/yes 12,2 Kg
50 x 43,5 x 23,5
28 pz
1,5 mm2 30 m
H05VV-F
1000 W
3000 W
882650
EUROPE

si/yes 12,6 Kg
50 x 43,5 x 23,5
28 pz
1,5 mm2 30 m H07RN-F
1000 W 3000 W 882700
NO
  si/yes 13,4 Kg
50 x 43,5 x 23,5
28 pz
1,5 mm2 30 m H07RN-F 1000 W 3000 W 882750
EUROPE

si/yes 13,8 Kg 50 x 43,5 x 23,5
28 pz

2,5 mm2 25 m H07RN-F 2800 W 5000 W 882800
NO   si/yes 14,7 Kg 50 x 43,5 x 23,5
28 pz
2,5 mm2 25 m H07RN-F 2800 W 5000 W 882850
EUROPE
si/yes 15,2 Kg 50 x 43,5 x 23,5
28 pz
