ROLL EXTRA

  • ROLL EXTRA
  • Features

    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • Different hoses lengths and sizes available
    • Inlet and outer fittings sizes 1/4”- 3/8” GAS according to the hose
    • CE approved
  • Data sheet

    Download the product data sheet.

    Download

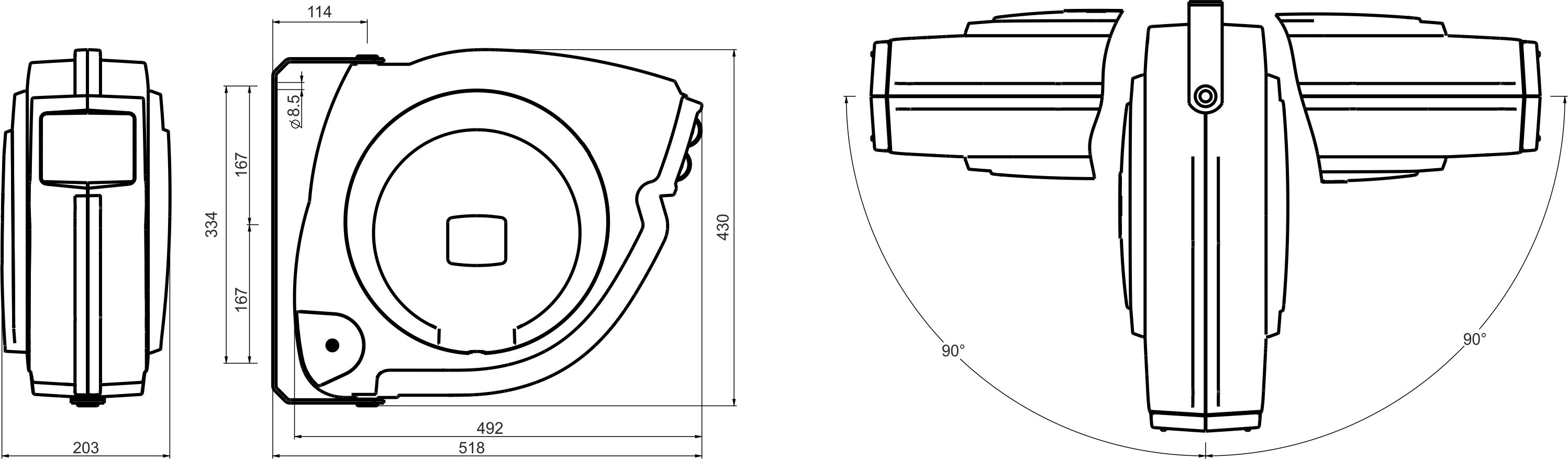

  • Drawings
  • Parts

    Download the parts data sheet.

    Download






Optional/Details

Glossy polyurethan hose
Glossy polyurethan hose
Hose guide rollers
Hose guide rollers
SLOWMOTION integrated
SLOWMOTION integrated

Tabella

CodeInternal diameter (ID)Inlet fitting
Outlet fitting
Max pressure
Air
Water
WeightDimensions (cm)pcs x Pallet
882100
10 mm
20 m
3/8” F
3/8” M
15 bar
Max 15 bar
Max 40°C
8,3 Kg
50 x 43,5 x 23,5
28 pz
882200 12 mm 15+1 m 1/2” F 1/2” M 15 bar Max 15 bar Max 40°C 8,3 Kg 50 x 43,5 x 23,5 28 pz
