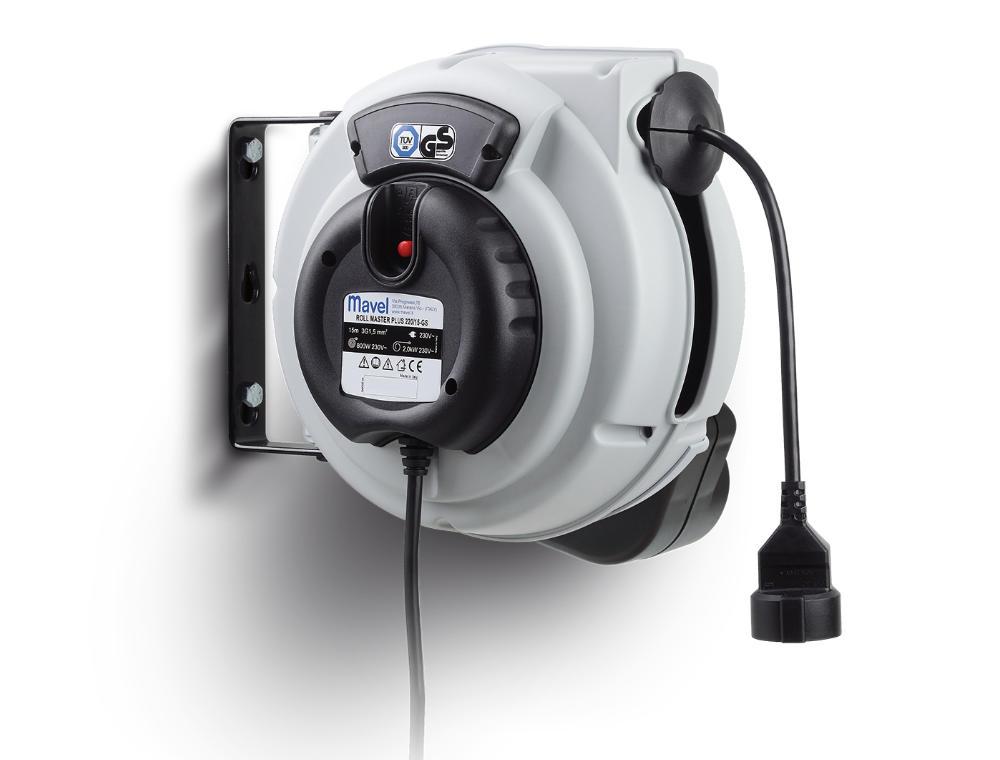

Roll Master Plus 230 V

  • Roll Master Plus 230 V
  • Features

    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • CE approved
    • TÜV approved
  • Data sheet

    Download the product data sheet.

    Download

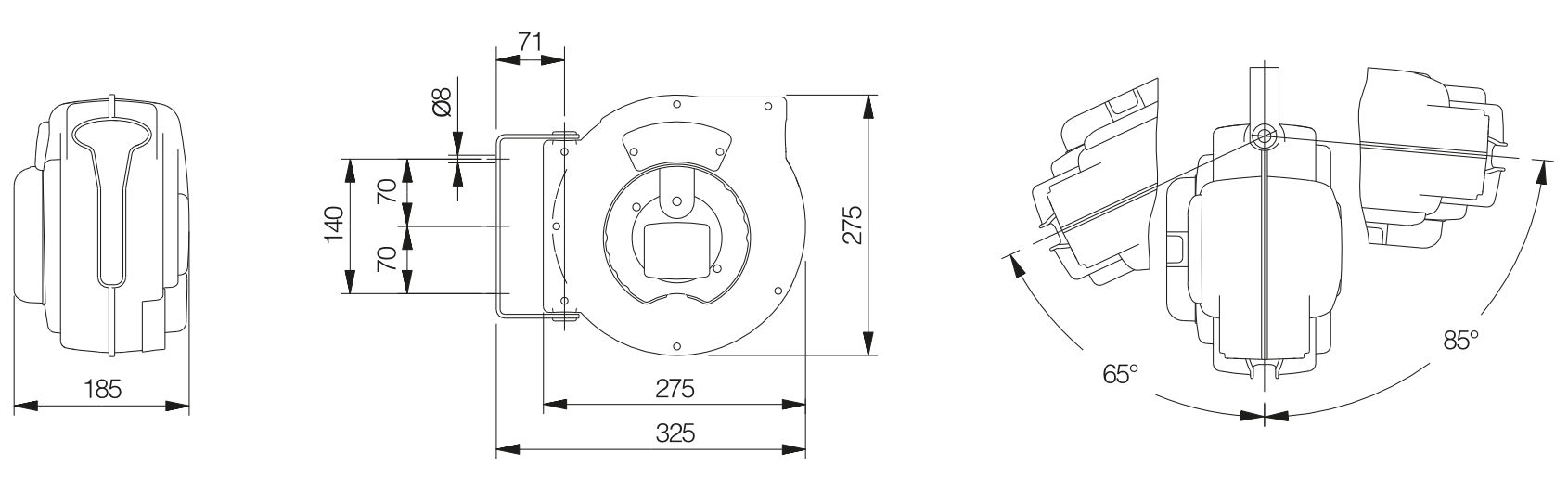

  • Drawings
  • Parts

    Download the parts data sheet.

    Download






Optional/Details

++#SLOWMOTION Cod. 707220*--

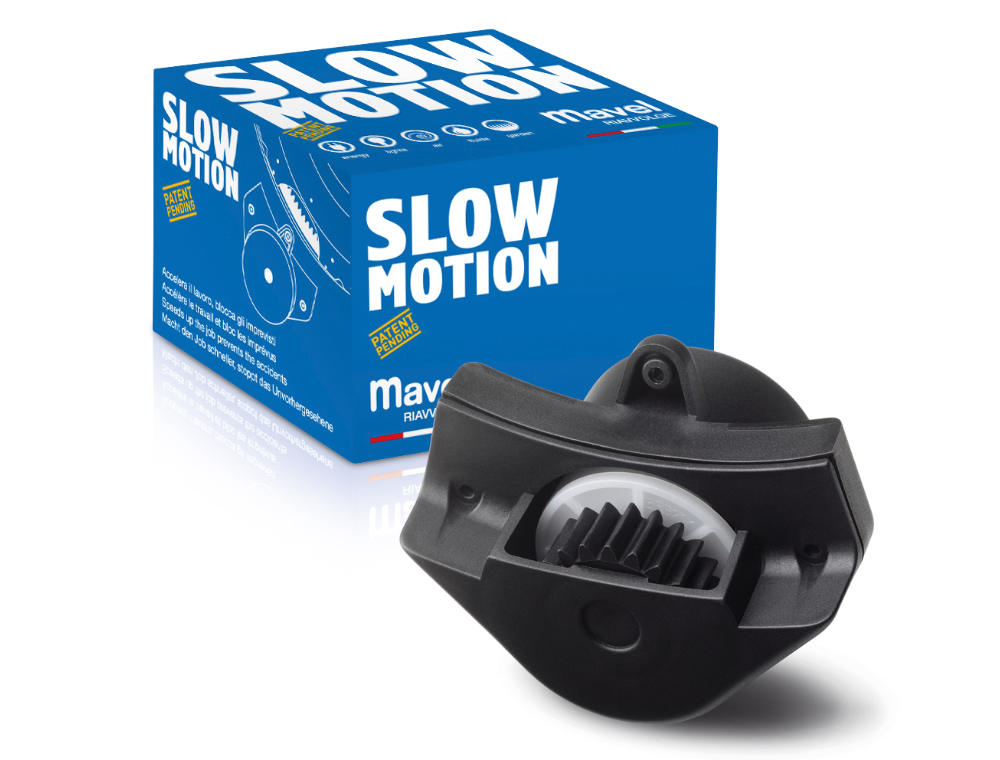

SLOWMOTION Cod. 707220

2x

Size Cable lengthCable length
Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
Omologation Thermostat
Weight Dimensions (cm) pcs x Pallet
1 mm2 15 m H05RN-F
800 W 2000 W 811010
NO   si/yes 3,8 Kg 29 x 29 x 20,5
88 pz

3G 230V

Size Cable lengthCable length
Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
Omologation Thermostat
Weight Dimensions (cm) pcs x Pallet
1,5 mm2 15 m H05VV-F
800 W 2000 W
811020
NO   si/yes 4,5 Kg 29 x 29 x 20,5
88pz
1,5 mm2 15 m
H05VV-F
800 W
2000 W
811030
SCHUKO
si/yes si/yes 4,5 Kg
29 x 29 x 20,5
88pz
1,5 mm2 15 m H05VV-F 800 W 2000 W 811040
FRENCH si/yes si/yes 4,5 Kg
29 x 29 x 20,5
88pz

2,5 mm2 10 m
H07RN-F
1600 W
3000 W
811054 NO
  si/yes 5 Kg 29 x 29 x 20,5 88pz
2,5 mm2
10 m
H07RN-F
1600 W
3000 W
811055
SCHUKO
si/yes si/yes 5,1 Kg
29 x 29 x 20,5
88pz
2,5 mm2
10 m
H07RN-F
1600 W
3000 W
811058
FRENCH
si/yes si/yes 5,1 Kg
29 x 29 x 20,5
88pz
