  • Roll Special
  • Features
    • Automatic spring rewinding
    • Plastic outer casing
    • Steel swivelling wall bracket
    • Ratched stop device easilly inspectable and removable by the end user
    • Available with different type of cable (H05RN-F, H05VV-F, H07RN-F)
    • CE approved
    • TÜV approved
  • Data sheet

    Download the product data sheet.

    Download

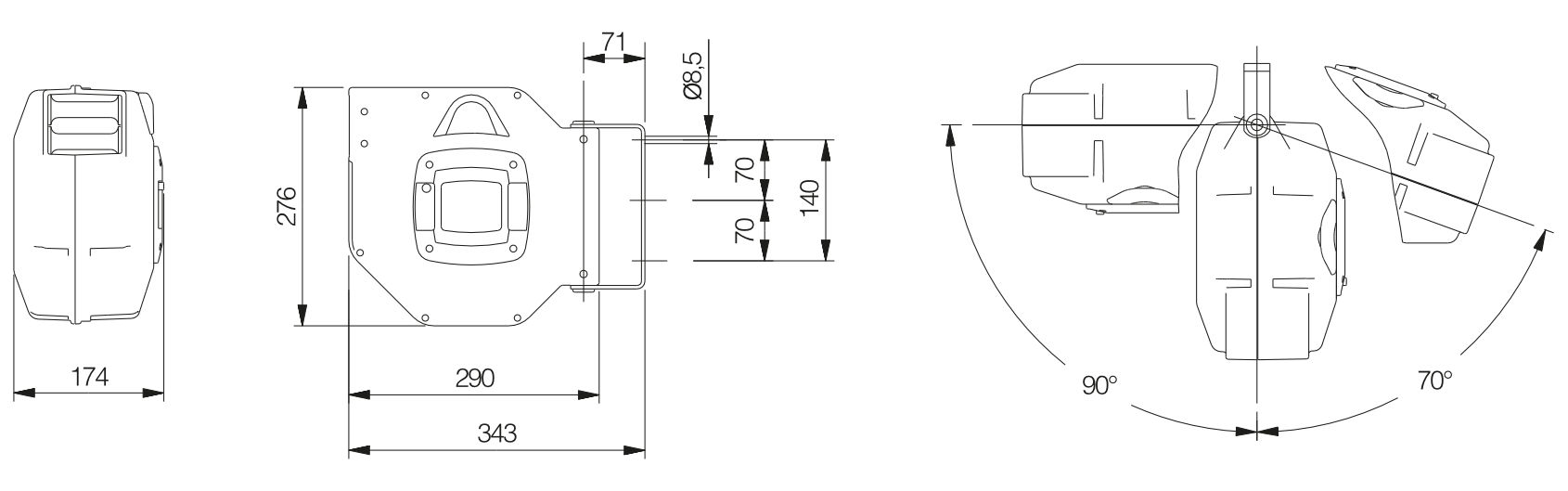

  • Drawings
    roll special 230 400
    Zoom
  • Parts

    Download the parts data sheet.

    Download





Optional/Details

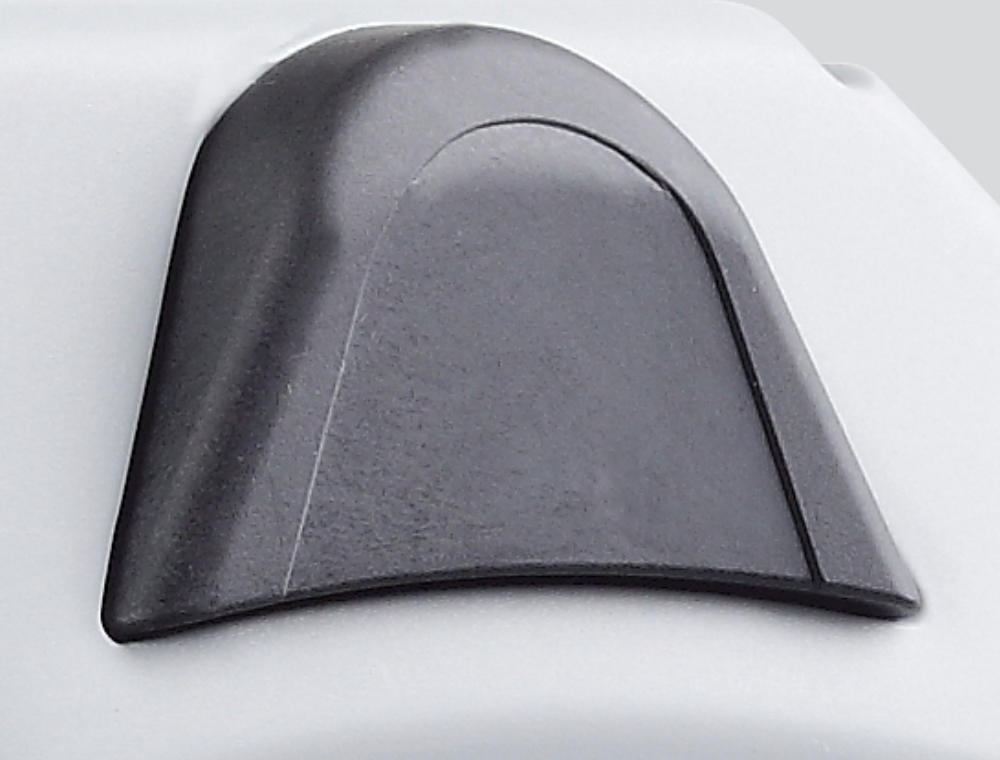

Plastic outer casing
Plastic outer casing

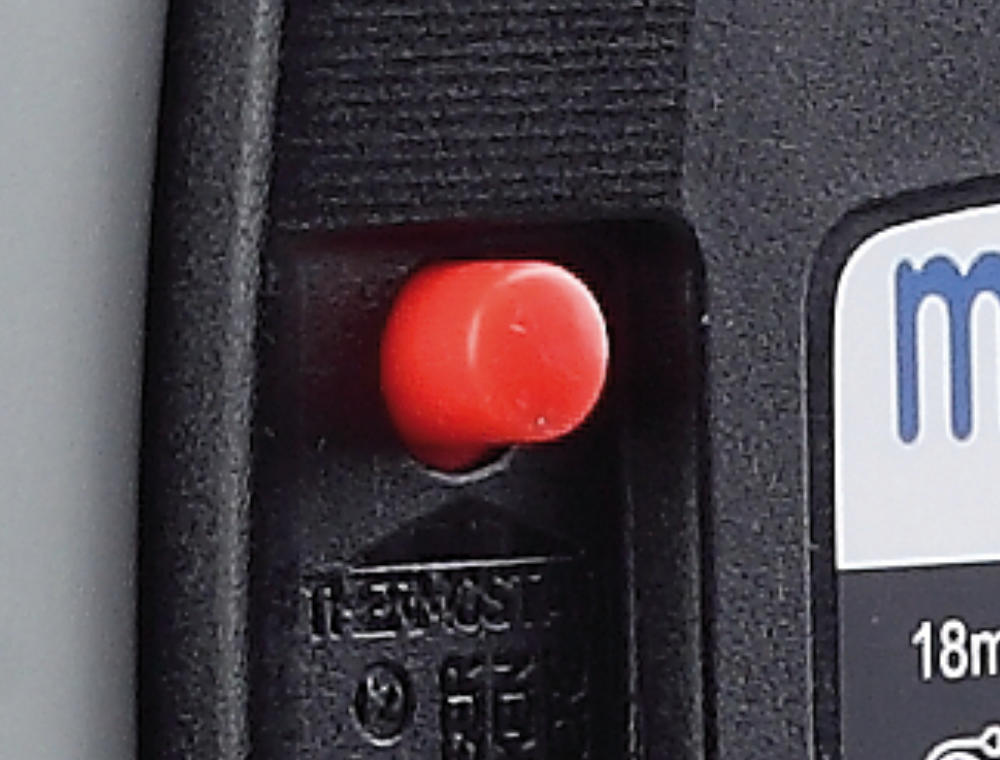

Circuit-braker manually restorable
Circuit-braker manually restorable

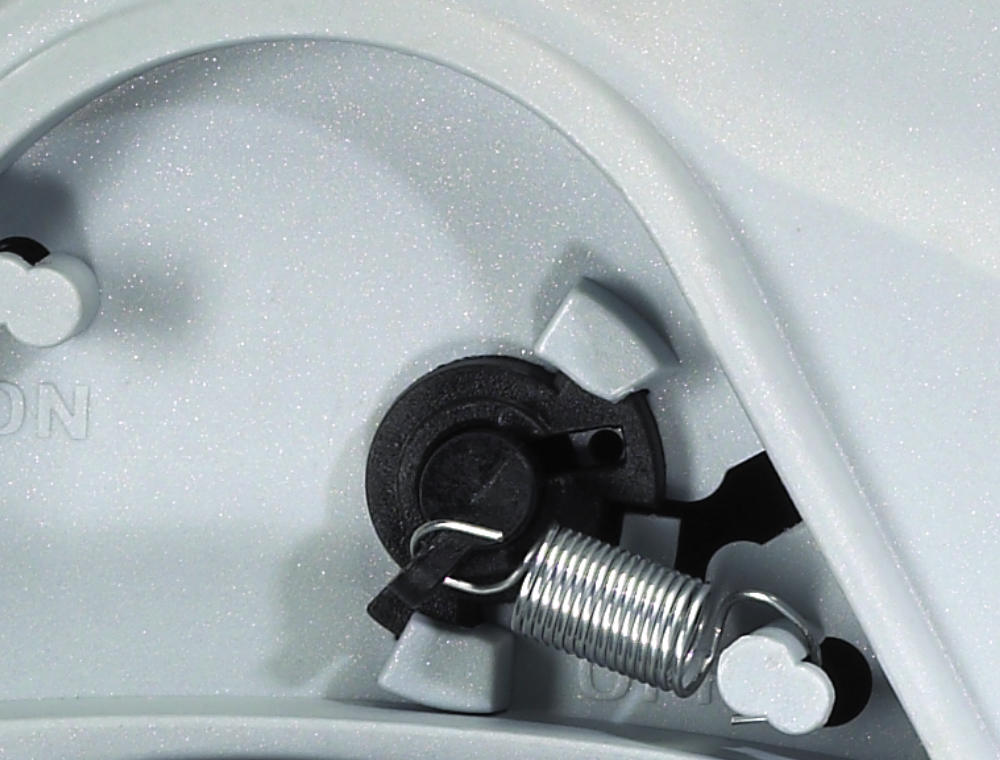

Cable ratched stop device easily removable
Cable ratched stop device easily removable

2x

Size Cable lengthCable length Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
 Omologation Thermostat
 Weight Dimensions (cm) pcs x Pallet
1 mm2 20 m H05RN-F
 800 W 2000 W 824123
 NO   si/yes 4,4 Kg 35 x 33 x 21
 72 pz

3G 230V

Size Cable lengthCable length Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
 Omologation Thermostat
 Weight Dimensions (cm) pcs x Pallet
1,5 mm2 18 m H05VV-F
 800 W 2000 W
 824132
 NO   si/yes 5,6 Kg
 35 x 33 x 21
 72 pz
1,5 mm2 18 m
 H05VV-F
 800 W
 2000 W
 824142
 SCHUKO
 si/yes si/yes 5,6 Kg
 35 x 33 x 21
 72 pz
1,5 mm2 18 m H05VV-F 800 W 2000 W 824152
 FRENCH si/yes si/yes 5,6 Kg
 35 x 33 x 21
 72 pz

5G - 400V

Size Cable lengthCable length Cable Power with wound cablePower with wound cable Power with unwound cablePower with unwound cable Code Plug / Socket
 Omologation Thermostat
 Weight Dimensions (cm) pcs x Pallet
1,5 mm2 10 m H05VV-F
 1000 W 3000 W
 824170
 NO   si/yes 5,2 Kg
 35 x 33 x 25
 48 pz
1,5 mm2 10 m
 H05VV-F
 1000 W
 3000 W
 824180
 EUROPE
si/yes 5,6 Kg
 35 x 33 x 25
 48 pz
1,5 mm2 10 m H07RN-F
 1000 W 3000 W 824175
 NO
   si/yes 5,9 Kg
 35 x 33 x 25
 48 pz
1,5 mm2 10 m H07RN-F 1000 W 3000 W 824185
 EUROPE
si/yes 6,3 Kg 35 x 33 x 25
 48 pz
